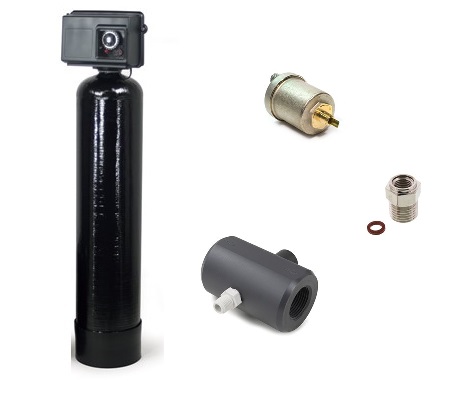

Chemical Free 3/4 Cu Ft Iron Filter with Fleck 2510 Control Valve and A or AM Bed

The chem-free iron filter features two major components, an air injector and a backwashable filter containing special media. In some applications a contact tank or an additional pressure tank may be required for the chem-free to function. The air injector adds a controlled amount of air to the water supply just before it enters the pressure tank. The air starts the iron removal process as the water sits in the tank. The water’s pH is automatically raised to neutral or higher as it passes through the filter bed and a catalytic effect occurs between the iron and filter media. The iron actually changes into a colloidal state and as such it is trapped throughout the filter bed. This produces an iron removal capacity four times greater than a conventional iron removal filter. The chem-free filter media remains unchanged at the end of the oxidation process and consequently requires no chemical regeneration. Periodic backwashing of the filter bed flushes the precipitated iron to the drain and readies the filter for use again. The duration and frequency of backwashing varies from 10 to 12 minutes every 4 to 12 days, depending on iron concentration and water usage. Once installed, the chemical free iron filter requires little or no attention. It automatically removes soluble iron, sometimes called ferrous iron or clear water, precipitated iron, sometimes called ferric iron or red water and bacterial iron. It is safe and very economical because it requires none of the expensive or messy chemicals conventional iron filters use. The chemical free iron removal filters patented process raises the pH of the water, improving the efficiency of iron removal. This has the added benefit of neutralizing acidic water. Features Minimal operating costs - requires no chemicals for regeneration Attention-free operation removes iron concentrations of up to 35 ppm Conserves water - requires only occasional backwashing using 10% of the water a conventional filter uses in regeneration Five year warranty on 2510 Noryl control valve Heavy duty mineral tanks with 10 year warranty. Neutralizes acidic water Optional bypass valve Optional insulated tank jacket to reduce condensation.

Service Flow Rate 2 GPM Peak Flow rate 4 GPM Backwash Flow Rate 4GPM 8x47 Mineral Tank Space 10x10x 57 Weight 100lbs Iron Removal 22500 ppm

HYDROCHARGER AND AIR VENT SYSTEM SHOW - RECOMMENDED FOR MORE EFFICIENT IRON REMOVAL
