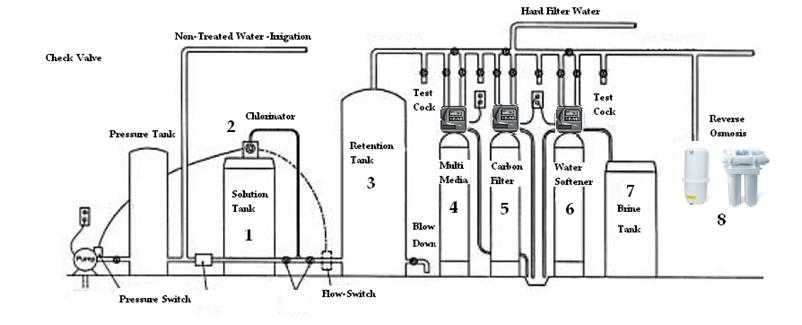

Chlorination System Installation

User Involvement A problem water system requires testing and monitoring. The user must be aware of the chemical mixing procedure and how to test for residual chlorine at the test tap between the multi-media and carbon filters, etc. The chlorine tank must not run dry and lose the prime of the feed pump.

• The chlorinator is wired to the pump or flow switch

• The retention tank is sized for a minimum of 20 minutes retention

• Optional flow switch is to be used when outside unchlorinated water service is required

• Backwash and regeneration times must be staggered to ensure adequate water supply for proper regeneration
