Deluxe Chlorination Well System

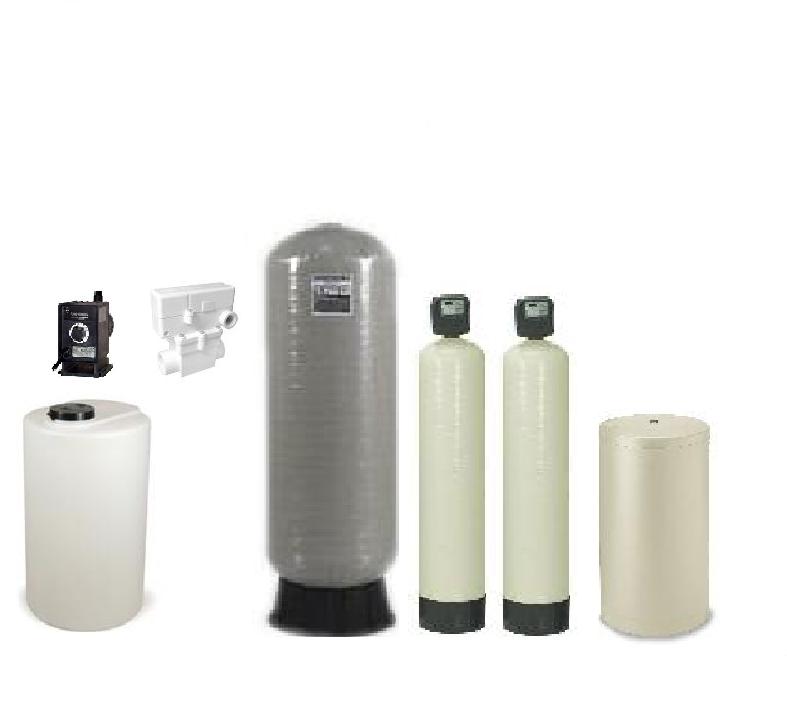

This is the deluxe chlorination well package. This is the system that we recommend. It uses liquid chlorine that is easier to maintain. This system consists of the following equipment:

1. Uni-Dose 24 Gallons Per Day 115 Volt Pump Single Control- These reliable feed pumps are designed specifically for the water conditioning industry. The Uni-Dose Series U Single Control Model features an adjustable stroke length and fixed speed (stroking frequency). The dual models feature both adjustable speed and stroke length controls. These Uni-Dose Series U Chemical Feeders are manufactured exclusively by LMI for Nelsen Corporation with a black housing. Maximum output from 6 to 30 gallons per day. Each Uni-Dose pump comes complete with a priming valve, injection check/back pressure valve, foot valve with strainer, vinyl suction tubing, UV resistant PE discharge tubing and a ceramic weight. Head and fittings are constructed of high strength PVC

2. GRID 1 INCH FLOW SWITCH- Water Flowswitch features a low flow operation with 10 amp set point on 1.0 gpm and up. Connections are

3. 15 Gallon Natural Polyethylene Solution Tank-Clear so you can see the chlorine level

4. Clack Retention Tank 80 Gallon 21 x 69- Clack Corporation Retention Tanks are designed for easy installation with convenient IN/OUT piping connection at the top of the tank. Included with the tank is the 1190RT IN/OUT Head, 1 - ¼ x 1 - ½ PVC Solvent Straight Fitting Kit and (2) 1 - ¼ Plastic Straight Male NPT Fittings. Bypass is optional.

Full 1 blow down drain at lowest point of tank, 360° drain orientation, Black one piece polyethylene liner for impact and corrosion resistance, 5 year limited warranty, Baffle diffuser for enhanced chemical/water mixing included, Gray outer fiberglass with epoxy resin, Maximum Operating Pressure - 75 PSI, Maximum Operating Temperature - 120°F.

IMPORTANT - Polyglass tanks are designed to withstand pressure but they will collapse if subjected to a vacuum. A vacuum breaker should always be installed to prevent tank damage.

5. CLACK WS1 I INCH 1 CU FT CARBON FILTER SYSTEM- 10x44 or 9x48 resin tank 1.0 cubic feet of CARBON 5 gpm service flow rate 4.5 gpm backwash flow rate Floor Space Required is 11x14x51 Shipping Weight is 80 lbs Highly Effective and Economical Filter Medium for Dechlorination and Trace Dissolved Organic Removal Used in Water Treatment Where High Quality Water is Desired

OR Fleck 2510 3/4" 1 Cu Ft Carbon Filter System-0x44 or 9x48 resin tank 1.0 cubic feet of CARBON 5 gpm service flow rate 4.5 gpm backwash flow rate Floor Space Required is 11x14x51 Shipping Weight is 80 lbs Highly Effective and Economical Filter Medium for Dechlorination and Trace Dissolved Organic Removal Used in Water Treatment Where High Quality Water is Desired

***Clack Units available for Local installation only***

6. CLACK WS1 1 EE Metered 32000 GRAIN WATER SOFTENER SYSTEM COMPLETE- Bypass valve included 9x48 resin tank 1.0 cubic feet of resin 5.0 gpm service flow rate 2 gpm backwash flow rate Floor Space Required is 25x15x56 Shipping Weight is 100 lbs

OR

Fleck 2510 3/4" Metered 32000 Grain Water Softener System Complete-Bypass valve included 9x48 resin tank 1.0 cubic feet of resin 5.0 gpm service flow rate 2 gpm backwash flow rate Floor Space Required is 25x15x56 Shipping Weight is 100 lbs



***Clack Units available for Local installation only***

Additional Options:

Multimedia Filters:

1. CLACK WS1 1IN 3/4 1 CF MULTIMEDIA TURBIDITY/SEDIMENT FILTER- 10x44 resin tank 1.0 cubic feet of resin 5 gpm service flow rate 4.5 gpm backwash flow rate Floor Space Required is 11x14x51 Shipping Weight is 90 lbs

Our turbidity filters use a multi-media bed comprised of a variety of gravel and sand (multi-media) to trap suspended particulate matter, such as clay and silt, which gives water a cloudy appearance. The result is clean, clear water. The multi-media filter bed facilitates more thorough backwashing and prevents channeling. Periodic backwashing with our calendar clock control valves cleans the bed.

Features: Electrical: 110V/60Hz standard (all valves) Clock initiated Superior fiberglass mineral tank with color choice of almond, blue or black Multi-Media Layered Media Bed Gravel underbedding

Filters with - 2510/7000/WS1 Calendar Clock Valve - Mechanical The 2510/7000/WS1 valve is the workhorse of our filter line. It can easily handle the regeneration requirements of all our filters up to 12 inch in diameter and it uses a reliable and fully adjustable mechanical timer

2. CLACK WS1 1 IN 1 CF MICRO Z SEDIMENT FILTER 10x44 resin tank 1.0 cubic feet of Micro Z 9 gpm service flow rate 6 gpm backwash flow rate Floor Space Required is 11x14x51 Shipping Weight is 110 lbs

Whole house filters for sediment reduction with high efficiency Micro-Z™ filter media. Our filtration systems for sediment use our high performance Micro-Z filter media to provide increased loading capability and higher service flow rates. Micro-Zs unique Zeolite structure offers increased porosity to outperform conventional sand filters by reducing water consumption. The need to backwash is dramatically reduced!

Features / benefits Uses Micro-Z™ for increased solids loading. Unique structure allows for higher flow rates. Reduces water consumption because the need to backwash is dramatically reduced. Reliable equipment, designed for long-term service.

Micro-Z™ granular filter media outperforms conventional multimedia materials due to its unique structure, allowing particulate to penetrate deeply into the filter bed to provide superior filtration at increased flow rates.

***SHIPPING IS NOT INCLUDED WITH THIS UNIT*** THIS SYSTEM WILL NEED TO BE DELIVERED EITHER TO A BUSINESS WITH A DOCK OR FORKLIFT. PLEASE CONTACT US AT 1-877-345-2770 OR 813-832-9293 FOR A FREIGHT PRICE
